AUTO
FEEDING SYSTEM |
| |
A
mechanism system is used as feeding system that
provides an exactly feeding quantity. Operator can
chose single side feeding, double side feeding or
not feeding. Besides, the quantity of feeding can
decide by adjusting the cam plates. |
|
|
GRINDING-HEAD
TABLE CROSS WAY REMOVED EQUIPMENT |
| |
The
grinding head can be moved cross way to the suitable
position for any kind of products. ( such grind
the back angle of slicer knife ). |
|
|
DOUBLE
ANGLE GRINDING |
| |
Some
of material of wood required small angle of knife
in slicing or peeling lathe, this kind of knives
are very easy to wear out so you must grind it very
often, but if you grind knife in double angles that
can extend life of knife. |
|
|
HIGH
ACCURATE SLIDE WAY |
| |
Two
sets of high grade of linear bearing are installed
for the material of slide way that can offer a high
accurate job. |
|
|
MAGNETIC
TABLE USED FOR ANY ANGLE |
| |
Magnetic
table can be turned over for 270 degree so that
suitable for grinding any knives. The accuracy of
angle divider is up to 0.05 degree. |
|
|
INVERTER SETTING UP FOR BOTH MOTOR SPEED
AND TRAVELING SPEED |
| |
Two
sets of inverter are used for changing the speed
of main motor so that the motor can produce higher
grinding speed to match our special whetstone, the
grinding more efficient. The other inverter controls
the traveling table with variable speed. |
|
|
GRINDING
HEAD MOVING UP AND DOWN SYSTEM |
| |
Operator
can switch the clutch which on the top of traveling
table, made the grinding head quick up and down
automatically by a gear reducer. |
|
|

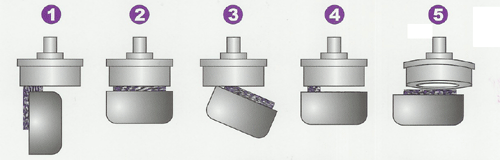

GRINDER
MODE |
| |
1. Pressure bar surface grinding.
2. Grinding surface.
3. Knife cutting angle grinding.
4. Pressure bar cutting angle grinding.
5. Knife facx side grinding. |
| |
|
