Descriptions

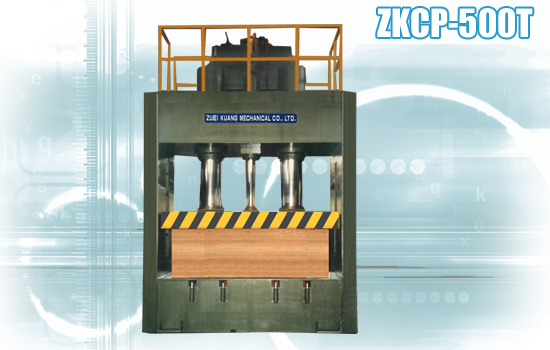

ZKCP-500T
Pressing capacity
500 Ton
Table area
1,370m/m X 2,800m/m
Daylight
1,200m/m
Stroke
850m/m
Dia. & Number of main Rams
φ356m/m X 2 PCs
Max. use pressure
251 Kg/Cm2
Downward speed
Approx. 4,500mm/min
Upward speed
Approx. 4,500mm/min
Control System
Automatic pressure and time control
Main motor
15HP X 4P X 1 set
Conveyor motor
2HP X 4P X 1 set
