ITEM

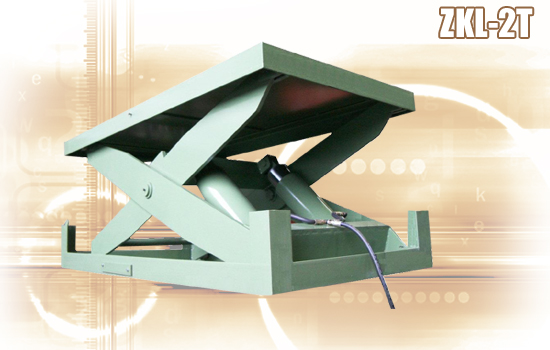

ZKL- 2T
Main Power
3Hp With Hydraulic Pump Controller
Max. Of Raising Height
1500m/m
Min. Of Lower Height
350m/m
Max. Bearing Weight
2 Tons
Table Dimension
4" X 8" Or 3" X 7"
Diameter Of Cylinder
φ100m/m x 270m/m x 2PCs
Max. Of Hydraulic Pressure
70 Kg/Cm2
Machine Weight
660 KGs
Raising & Lower Control
By Foot Switch
